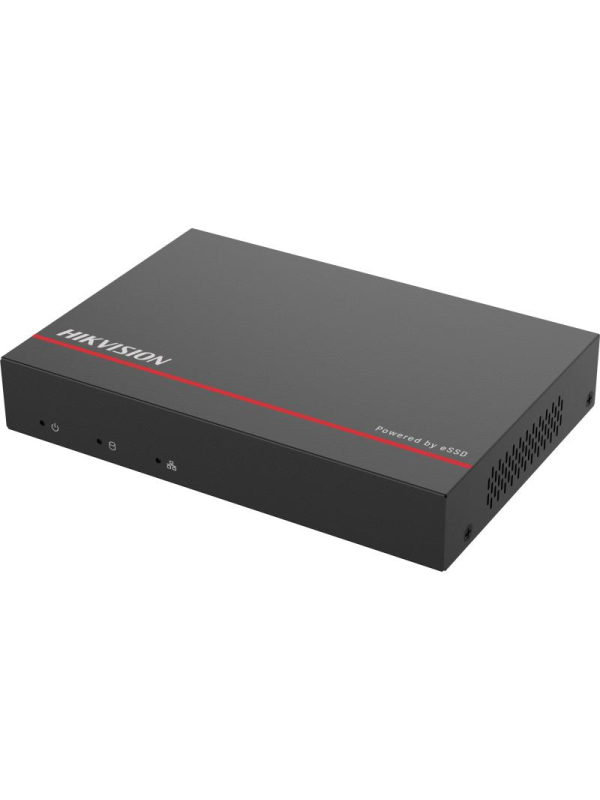

Hikvision SSD NVR
- Up to 4 channels of IP camera input
- Up to 40 Mbps incoming bandwidth and up to 60 Mbps outgoing bandwidth
- Up to 4 channels 1080p decoding capability
- H.265+/H.265/H.264+/H.264 video compression format
- Powered by eSSD technology
- Low power consumption
Video | |
Recording Resolution | 4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Video & Audio Input | |
IP Video | 4 channel |
Network | |
Band Width | 40 Mbps/60 Mbps |
Interface Port | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™,HTTP, HTTPS |
Image | |
Remote connection | 128 channel |
Hard Disk | |
Kapasite | 1TB SSD |
Interface Unit | |
Audio Compression Format | G.711ulaw/G.711alaw/G.722/G.726 |
External interface | |
USB Interface | Arka panel: 2 × USB 2.0 |
General Features | |
Consumption | ≤ 10 W |
Power | ≤ 36 W |
Power Supply | 48VDC, 1.04A |
Standards | IEEE 802.3 af/at |
Operating Temperature | -10 °C to 45 °C |
Dimension | 160 ×112 ×27mm |
Weight | 0.5 kg |
Humidity | 10 to 90 % |
Decoding Capacity | 4-ch@1080p (25 fps) |
HDMI Output | 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
Network Interface | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
